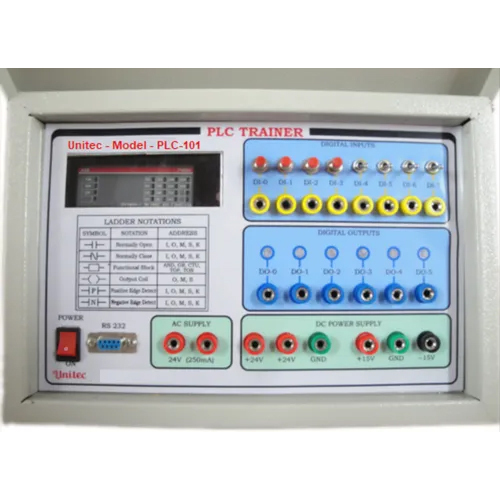

PLC Training Kit

About PLC Training Kit

Key Features:

• Integrated PLC Unit:
  Pre-configured PLC system (typically Siemens, Allen-Bradley, or Delta) used to control the firing angle of the SCR and manage converter operations.

• SCR Converter Circuit:
  Includes single-phase or three-phase controlled rectifier modules for demonstrating power conversion principles.

• Firing Angle Control:
  Real-time control of SCR firing angle via PLC logic and analog/digital outputs.

• Monitoring Interface:
  LED indicators, voltmeters, ammeters, and digital displays for monitoring input/output voltages, current, and firing pulses.

• Safety Features:
  Over-voltage, over-current, and short-circuit protection, emergency stop, and proper isolation.

• Modular Design:
  Enables easy replacement of SCR modules and other components for testing and fault simulation.

• Educational Content:
  Comes with a detailed user manual, wiring diagrams, sample PLC programs, and experiment sheets.

Applications:

• Education & Training in Industrial Automation

• Power Electronics Laboratories

• SCR-Based Motor Speed Control

• DC Motor Drives & Converter Design

• Skill Development Programs

Experiments Possible:

1. Study of SCR characteristics and triggering.

2. Control of single-phase half-wave and full-wave rectifiers using PLC.

3. PLC-based firing angle control for SCRs.

4. Implementation of closed-loop control for DC motor using SCR converters.

5. Fault simulation and troubleshooting.
